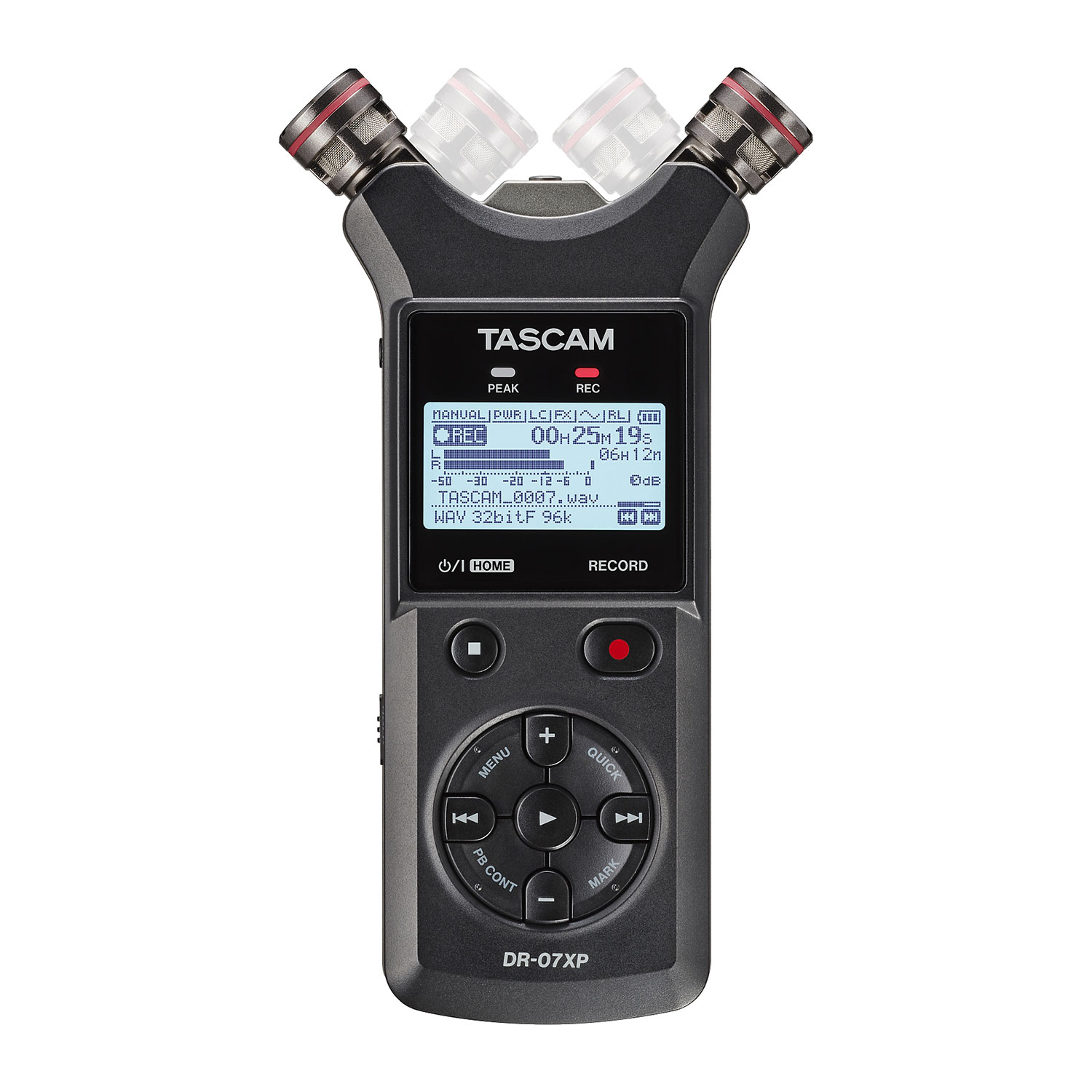

TASCAM DR-07XP Recorder

Tascam DR-07XP – Portable Stereo Audio Recorder with Adjustable Microphones & USB Interface

The Tascam DR-07XP is a premium portable stereo recorder with an integrated USB audio interface – ideal for musicians, filmmakers, podcasters, journalists, and anyone who needs professional audio recording on the go. Thanks to its advanced 32-bit float recording technology, you get distortion-free results without constantly adjusting input gain.

Equipped with adjustable stereo condenser microphones with cardioid pickup pattern, which can be switched between AB and XY positions, the DR-07XP offers flexible and highly accurate stereo imaging. Whether you're recording concerts, ambience, field sound or interviews, this recorder adapts to your needs. It supports microSD/microSDHC/microSDXC cards (up to 512 GB), making it perfectly suited for long sessions and high-resolution audio.

Highlights

• Portable stereo handheld recorder with switchable AB and XY microphone configurations for flexible stereo capture.
• 32-bit float recording up to 96 kHz – maximum dynamic range without clipping.
• Supports WAV/BWF (32-bit float, 24-bit, 16-bit up to 96 kHz) and MP3 (32 to 320 kbit/s) formats.
• Cardioid condenser microphones – ideal for music, spoken voice, ambience and field recording.
• USB-C audio interface (2-in / 2-out) for direct recording to PC or Mac.
• Over 17 hours of battery life using two AA alkaline batteries.
• Selectable low-cut filter to reduce handling noise and low-frequency rumble.
• Automatic level functions including Limiter, Auto-Level and Peak-Reduction.
• Built-in reverb, overdub, punch-in, markers, pre-record, auto-recording and more.
• Durable portable design with ¼" tripod mount – perfect for camera rigs and field setups.

Perfect For

• Musicians & bands (rehearsals, songwriting, live recordings)
• Videographers & content creators (audio for DSLR, mirrorless or smartphone rigs)
• Podcasters, journalists & interviewers
• Field recording, ambience & sound design
• Meetings, lectures, dictation & educational use

Convenience Features

• Pre-record buffer captures audio seconds before pressing the REC button.
• Auto-record with level detection – starts/stops automatically based on input threshold.
• Marker system (up to 99 per file) for fast navigation and editing.
• Tone generator / slate tone for video synchronization.
• Variable speed playback with constant pitch – perfect for practice or transcription.
• Loop, repeat and playlist features for learning, practicing or reviewing audio.
• Built-in EQ and automatic level alignment for consistent playback volume.
• Integrated mono speaker for quick monitoring without headphones.
• Chromatic tuner for tuning instruments.
• Multilingual menu and QUICK button for instant access to key functions.
• Hold (lock) function prevents accidental operation during transport.

Connections

• Stereo mic/line input: 3.5 mm TRS with plug-in power for lavaliers and external mics.
• Headphone/line output: 3.5 mm TRS
• USB-C port: USB 2.0 (Mass Storage & Audio Class) for data transfer and USB audio interface use

Key Features at a Glance

• Portable two-channel handheld audio recorder supporting microSDXC cards
• 32-bit float resolution for ultra-clean, distortion-free recordings
• High-SPL condenser microphones for loud sound sources (up to 125 dB SPL)
• USB-C audio interface with 2 inputs and 2 outputs
• Over 17 hours runtime using two AA alkaline batteries
• Supported audio formats:
  • Linear PCM (WAV/BWF): 32-bit float, 24-bit, 16-bit at 96 / 48 / 44.1 kHz
  • MP3 (compressed): 32–320 kbit/s at 44.1 / 48 kHz (VBR playback only)

Recording Functions

• Cardioid stereo condenser microphones – quick AB or XY setup
• XY configuration for mono-compatible audio and precise localization
• Low-cut filter (40, 80, 120, 220 Hz) for rumble and wind noise reduction
• Manual input gain control for music and outdoor recording
• Three auto level modes: Peak Reduction, Auto Level, Limiter
• Auto-recording based on input threshold
• Automatic marker creation during auto-record
• Punch-in recording with undo capability
• Overdub function without destroying the original take
• Dictation mode for speech and transcription
• 2-second pre-record buffer
• Self-timer recording (5 or 10 seconds)
• Create new audio files during recording manually or based on file size
• Up to 99 markers per file for fast navigation
• Tone generator for slate tones (video synchronization)
• Stereo mic/line input for external sources or microphones
• File naming based on date or user-defined string

Playback

• Automatic level alignment prevents playback volume jumps
• Variable speed playback (50–200%) with pitch lock
• Loop / repeat single track, all tracks or a selected region
• Create playlists with custom playback order
• Resume function remembers last playback position
• Jump-back function (1–10 / 20 / 30 seconds)
• Equalizer for playback sound shaping
• ID3 tag display (up to version 2.4)
• Built-in speaker
• Headphone/line output

Additional Features

• Built-in reverb effect (6 presets), applicable to input or playback signal
• Chromatic tuner
• QUICK button for fast access to commonly used functions
• Editing tools for trimming and splitting long recordings
• File and folder management functions
• Hold switch to prevent accidental operation
• Multilingual menu (English, German, French, Italian, Spanish, Portuguese, Japanese, Korean, Chinese, Russian)
• Backlit display for clear visibility in low-light environments
• USB 2.0 interface (USB-C) for file transfer
• Powered by two AA batteries, USB power or optional AC adapter (Tascam PS-P520U)
• ¼" tripod mount for attaching to stands or rigs
